What are Earth Rods?

What is an Earth Electrode?
Earth Rods are a type of Earth Electrode. An Earth Electrode is a conducting element buried directly in the ground, facilitating the flow of fault currents towards the ground. This means that Earth Electrodes are metallic and, since they have to be buried for long periods of time, they need to be resistant to corrosion as well. Earth Electrodes can come in a variety of materials, shapes, sizes, and arrangements including pipes, plates, a ring around the structure (known as Type B Earthing), or as an Earth Rod. These Rods are also commonly referred to as Ground Rods in North America. You can see Axis’s range of Earth Rods here or download our catalogue!
Types & Construction
TypeUsageCopper Bonded Earth RodsThe most cost-effective option while still providing corrosion resistance and low electrical resistance and the steel core makes it easier to be driven into the ground.Solid Copper Earth RodsUsed in areas with high corrosion or in applications where exceptionally long life are needed.Stainless Steel Earth RodsUsed where there may be issues caused by galvanic corrosion because of dissimilar metals buried close together.Galvanised Steel Earth RodsLow cost but also low electrical conductivity, current carrying capacity, and corrosion resistance.
Talk to our engineers!
A) Solid Copper Earth Rods
•
They are one of the best choices for Earth Electrodes. They can be used in areas with high corrosion or in applications where an exceptionally long life is needed. They are also used in installations with high fault currents. These Solid Copper Rods are manufactured from Solid Copper bars and are then processed to enable jointing. These Solid Copper Rods however are not suitable for deep driving into the ground because of the possibility of bending and are additionally significantly more expensive than the other Rod options.

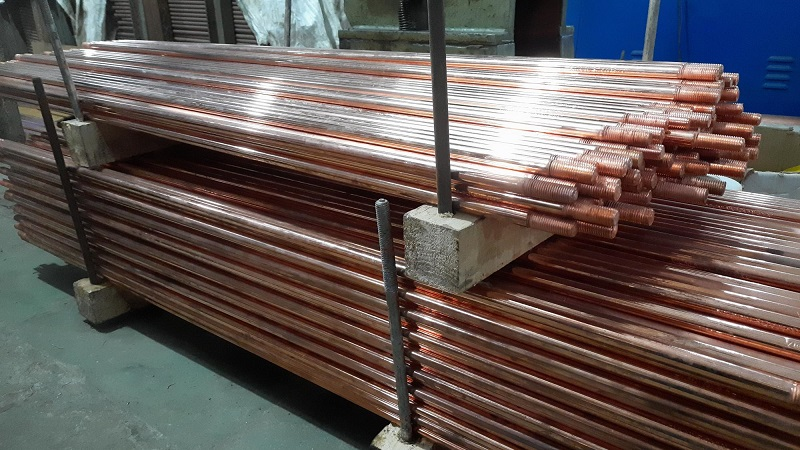

B) Copper Bonded or Copperbond Earth Rods
They are made using an electroplating process where a layer of Copper is deposited on a steel core. Copper Bonded products offer an advantage over copper-clad products because they are molecularly bonded with the steel core and will thus not slip or tear when they are driven into the ground. Copper Bonded Rods are also significantly more cost-effective than Solid Copper Rods while still providing corrosion resistance and low electrical resistance. Additionally, the steel core makes these Copper Bonded Rods more favourable to be driven into the ground.
Thus, Copper Bonded Rods provide high tensile strength using low carbon steel with molecularly bonded 99.9% pure electrolytic copper. This makes Copper Bonded Rods the most economically efficient and popular choice for Earth Rods around the world. Axis has more than 25 years of experience manufacturing and selling Copper Bonded Rods to utilities and other customers in more than 80 countries. Contact us to find out more about our products!
C) Stainless Steel Earth Rods
Stainless Steel Earth Rods offer functionality akin to our Solid Copper Rods but come with the added advantage of being more anodic. This feature makes them a preferred choice in environments where different types of metals are buried close to one another, minimizing the risk of galvanic corrosion. Though they tend to be on the pricier side compared to other options, their unique anti-corrosion properties make them a valuable choice for specialized applications.
Deepika Padukon
pathan
D) Galvanised Steel Earth ROD
