Description
SN Engineering offers a cutting-edge Hybrid Grounding Device designed for chemical earthing and lightning protection systems.
This innovative grounding technology ensures low resistance, high fault current capacity, and long-term reliability under all soil conditions.
📖 Overview
The Hybrid Grounding Device by SN Engineering combines the proven benefits of chemical earthing and mechanical grounding into one high-performance, maintenance-free solution.
It is engineered for industrial, commercial, and utility applications, offering low resistance, superior conductivity, and exceptional corrosion protection, even in challenging environments.
⚙️ Technical Specifications
Parameter Details
Type Hybrid Grounding Device (Copper Bonded + Chemical System)
Material High Conductivity Copper Bonded Steel / Pure Copper
Diameter 40mm / 50mm / 80mm / 90mm
Length 2m / 3m
Current Carrying Capacity Up to 60 KA
Compound Moisture-retaining conductive backfill
Standards IS 3043 / IEC 62561-7 / IEEE 80
Testing CPRI & PWD Approved
🧩 Key Features
✅ Combines the performance of chemical earthing and conventional grounding
✅ High conductivity due to copper bonding
✅ Stable resistance even in high-resistivity soil
✅ Long lifespan and maintenance-free operation
✅ Suitable for lightning protection and transformer earthing
✅ Compact, easy installation design
✅ IS, IEC, and IEEE compliant
🏭 Applications
Transformer & Substation Neutral Earthing
Lightning Protection Systems (ESE & Conventional)
Telecom Towers & Data Centers
Solar Power Plants
Industrial & Commercial Facilities
Hospitals & Infrastructure Projects
🌍 Advantages of SN Engineering Hybrid Grounding Device
Reliable performance in all soil types (dry, sandy, or rocky).
Superior corrosion resistance through conductive backfill protection.
Deep penetration design for stable, low resistance.
Dual function: acts as both earth electrode and lightning grounding system.
Complies with IS 3043, IEC 62561, and IEEE 80 for global safety standards.
🧠 Why Choose SN Engineering
✔ Over a decade of expertise in earthing & lightning protection
✔ CPRI & PWD approved earthing systems
✔ Customized solutions for all site conditions
✔ End-to-end services: design, manufacturing, supply, and installation
✔ Trusted by industries, EPCs, and government projects nationwide
🔍 SEO Keywords
Hybrid Grounding Device | Chemical Earthing System | Lightning Protection System | Copper Bonded Earthing | Hybrid Earthing Electrode | SN Engineering | IS 3043 Earthing System | IEC 62561 Lightning Protection | Maintenance Free Earthing | Transformer Grounding Device | Industrial Earthing Solution
📱 Suggested Hashtags
#HybridGroundingDevice
#ChemicalEarthing
#LightningProtection
#SNEgineering
#EarthingSystem
#IS3043
#ElectricalSafety
#GroundingTechnology
#IndustrialProtection
#MaintenanceFreeEarthing

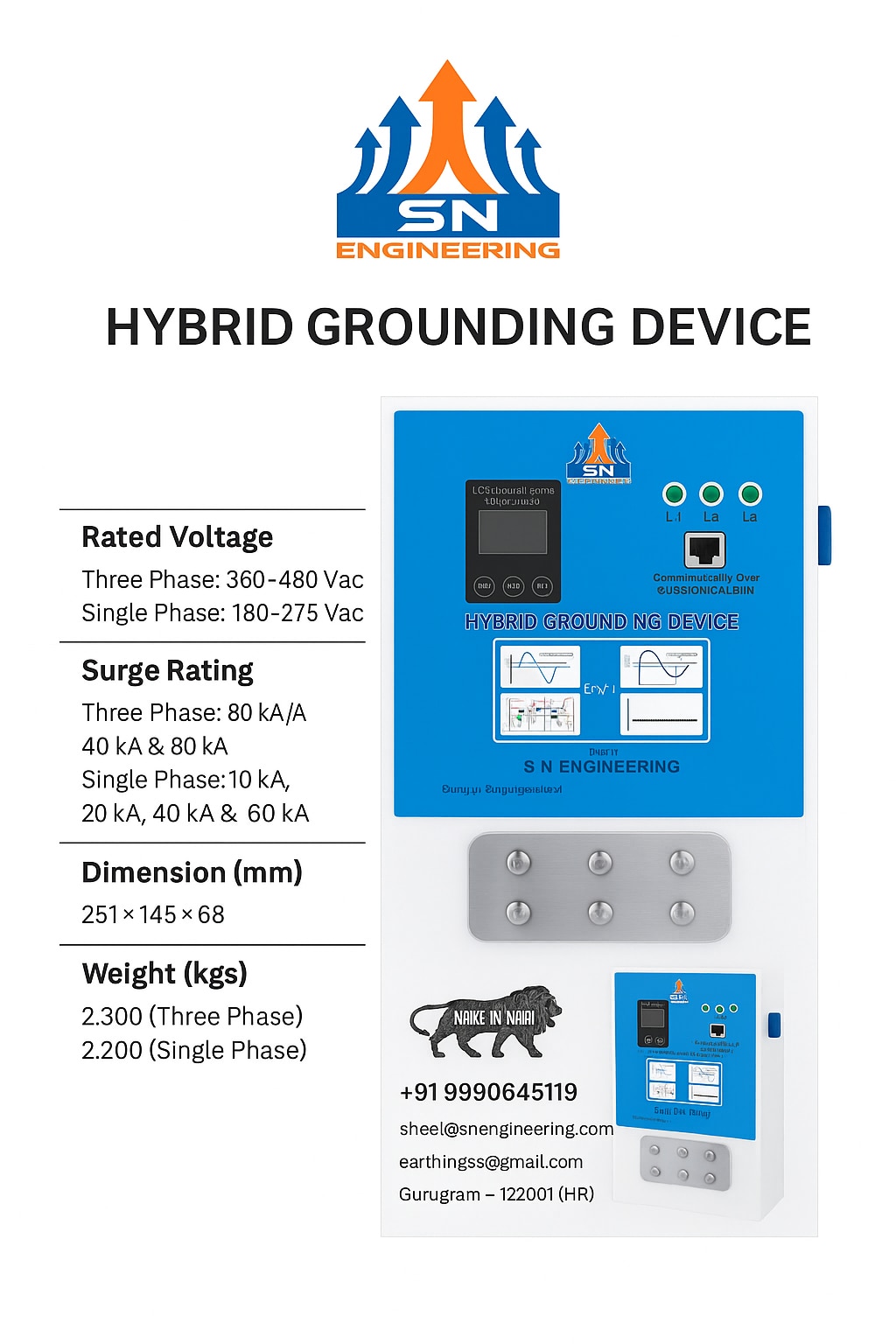

Hybrid Grounding System with Digital Surge Suppressor for Indirect Lighting Surge Protection with inbuilt Low Impedance Ground and Static charge eliminator.
• Protection from abnormal electrical characteristics.
• Protection against poor grounding.
• Remove earth to neutral stray voltage.
• Does not require separate grounding.
• Protection from electrical noise.
• Certified and Approved by CE & CPRI.
Technical Features:
• Hybrid Grounding Works on energy conversion principle it is know as Digital Grounding Apparatus.
• Hybrid Grounding, convert them into the Heat Energy and dissipate through Low Impedance Ground. These Surges enters via Electrical & Communication Lines through Conductive Structure (Like Communication cable, IF Cables, RF Cables, water pipe, Gas pipeline, steel structure etc.)
• HYBRID GROUNDING Provides Low Impedance Ground to eliminate Static Charge & Leakage current.
• HYBRID GROUNDING Provides Equi-Potential bonding to all the equipment and improve the earth resistance.
• HYBRID GROUNDING is an Integrated Protection System to protect nearly 20 equipment's within the radius of 5 meters depending upon the electrical wiring layout.
Key Advantages:
• Total Lightning Surge Protection.
• Provide Lowest Impedance Ground.
• Static Charge Eliminator.
• Provide Low Impedance path to Leakage Current.
• Provides Equi-Potential common Grounding.
• Maintain Earth to Neutral voltage less than 1 Volts.
Specifications
| Hybrid Grounding | 40000 |
|---|---|
| Hybrid Earthing | 40000 |
