8 / 10 mm ALUMINIUM SOLID ROUND CONDUCTOR in 8mm Aluminum Solid Round Conductor is designed for use as a horizontal air termination conductor on building terraces, rooftops, industrial sheds, commercial complexes, and infrastructure projects. The conductor forms part of the lightning protection mesh network and is installed as per approved drawings to meet the requirements of IS/IEC 62305 and IEC 62561-2. by DEHN – Germany, premium lightning & surge protection solutions. OBO Bettermann – Germany, complete IEC 62305 lightning protection components. nVent ERICO – Global leader in earthing, bonding, and lightning protection. Furse (ABB) – Widely used for earthing and lightning protection systems. Indelec – France, known for ESE lightning arresters. Phoenix Contact – Surge and lightning protection specialist. CITEL – France, global surge protection manufacturer. ABB Lightning Protection – Earthing, surge, and lightning protection products. Allied Power Solutions (APS) – Indian manufacturer of lightning protection and earthing systems.,

Chat with us

8mm Aluminum Solid Round Conductor is designed for use as a horizontal air termination conductor on building terraces, rooftops, industrial sheds, commercial complexes, and infrastructure projects. The conductor forms part of the lightning protection mesh network and is installed as per approved drawings to meet the requirements of IS/IEC 62305 and IEC 62561-2. by DEHN – Germany, premium lightning & surge protection solutions. OBO Bettermann – Germany, complete IEC 62305 lightning protection components. nVent ERICO – Global leader in earthing, bonding, and lightning protection. Furse (ABB) – Widely used for earthing and lightning protection systems. Indelec – France, known for ESE lightning arresters. Phoenix Contact – Surge and lightning protection specialist. CITEL – France, global surge protection manufacturer. ABB Lightning Protection – Earthing, surge, and lightning protection products. Allied Power Solutions (APS) – Indian manufacturer of lightning protection and earthing systems.

8 / 10 mm ALUMINIUM SOLID ROUND CONDUCTOR

INR 1500

Phone Number

08042756762

Please keep 0 before dialling the number.

Email Address earthingss@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address DSS 5 1 st floor , Above patanjli store sec 10 , Nera Euro International School Sec 10 Gurugram haryana 122001

Gurugram, India, 122001

Description

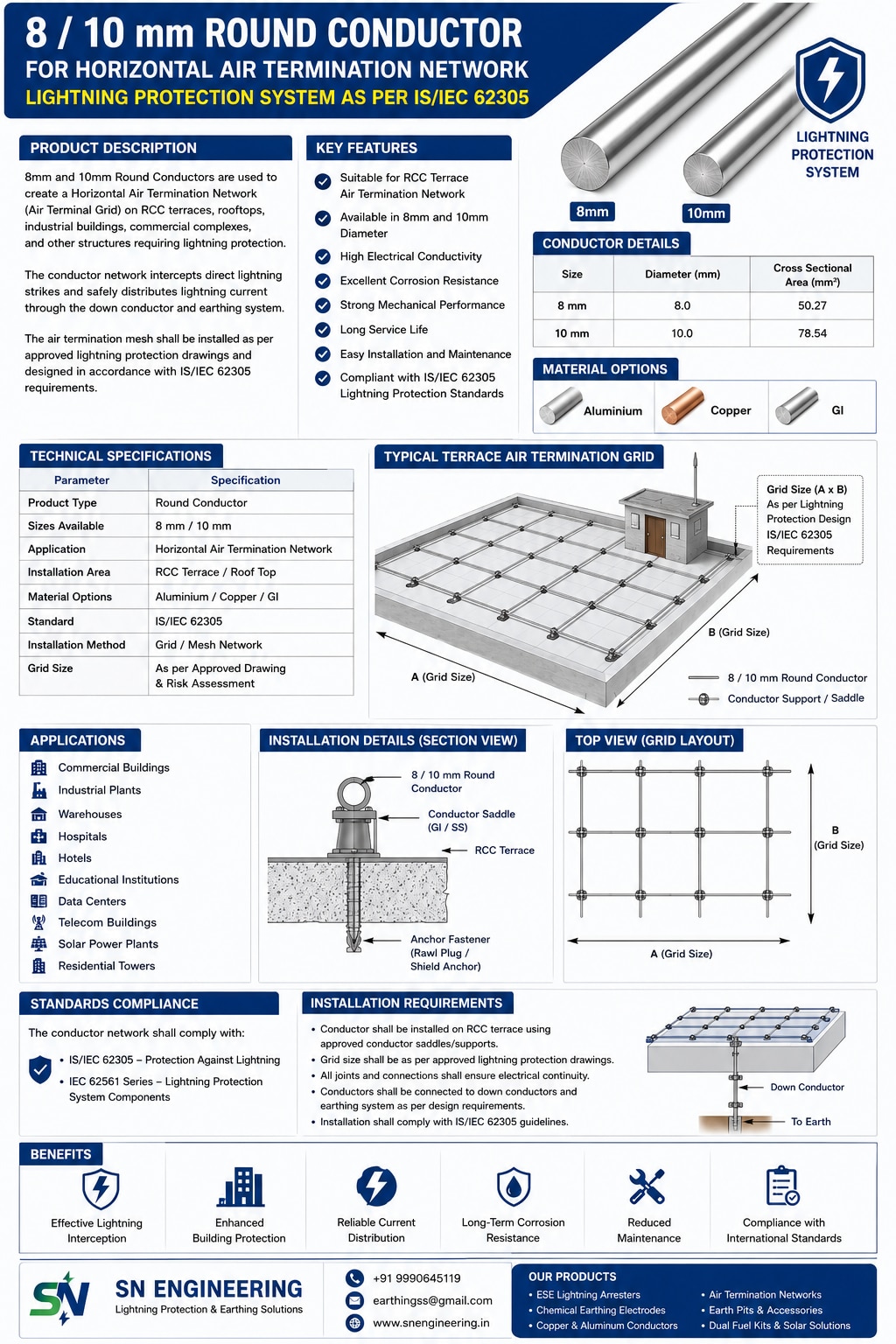

8 / 10 mm ROUND CONDUCTOR FOR HORIZONTAL AIR TERMINATION NETWORK Lightning Protection System as per IS/IEC 62305 PRODUCT DESCRIPTION 8mm and 10mm Round Conductors are used to create a Horizontal Air Termination Network (Air Terminal Grid) on RCC terraces, rooftops, industrial buildings, commercial complexes, and other structures requiring lightning protection. The conductor network intercepts direct lightning strikes and safely distributes lightning current through the down conductor and earthing system. The air termination mesh shall be installed as per approved lightning protection drawings and designed in accordance with IS/IEC 62305 requirements. KEY FEATURES ✔ Suitable for RCC Terrace Air Termination Network ✔ Available in 8mm and 10mm Diameter ✔ High Electrical Conductivity ✔ Excellent Corrosion Resistance ✔ Strong Mechanical Performance ✔ Long Service Life ✔ Easy Installation and Maintenance ✔ Compliant with IS/IEC 62305 Lightning Protection Standards TECHNICAL SPECIFICATIONS Parameter Specification Product Type Round Conductor Sizes Available 8 mm / 10 mm Application Horizontal Air Termination Network Installation Area RCC Terrace / Roof Top Material Options Aluminium / Copper / GI Standard IS/IEC 62305 Installation Method Grid / Mesh Network Grid Size As per Approved Drawing & Risk Assessment APPLICATIONS Commercial Buildings Industrial Plants Warehouses Hospitals Hotels Educational Institutions Data Centers Telecom Buildings Solar Power Plants Residential TowersSTANDARDS COMPLIANCE The conductor network shall comply with: IS/IEC 62305 – Protection Against Lightning IEC 62561 Series – Lightning Protection System Components INSTALLATION REQUIREMENTS Conductor shall be installed on RCC terrace using approved conductor saddles/supports. Grid size shall be as per approved lightning protection drawings. All joints and connections shall ensure electrical continuity. Conductors shall be connected to down conductors and earthing system as per design requirements. Installation shall comply with IS/IEC 62305 guidelines. BENEFITS ⚡ Effective Lightning Interception ⚡ Enhanced Building Protection ⚡ Reliable Current Distribution ⚡ Long-Term Corrosion Resistance ⚡ Reduced Maintenance ⚡ Compliance with International Standards SN ENGINEERING Lightning Protection & Earthing Solutions 📞 +91 9990645119 📧 earthingss@gmail.com
