Ensure electrical safety and system reliability with SN Engineering’s Specialized Transformer Neutral Earthing Systems.
Engineered for low resistance, high fault current capacity, and compliance with IS 3043 & IEEE standards, providing long-term stability and protection for transformers and substations.

📖 Overview

SN Engineering offers Specialized Earthing Solutions for Transformer Neutrals, designed to maintain stable system voltage, protect equipment, and provide safe dissipation of fault currents.

Our neutral earthing systems are built using high-conductivity copper bonded or GI electrodes, chemical backfill compounds, and heavy-duty connections to ensure consistent performance under high fault conditions.

Every earthing system is engineered as per IS 3043, IEC 60364, and IEEE 80 guidelines for transformer and substation grounding.

⚙️ Technical Features

✅ Type: Copper Bonded / GI Chemical Earthing for Transformer Neutral
✅ Electrode Size: 40mm, 50mm, 80mm, 90mm dia | 2m to 3m length
✅ Resistance Value: < 1 Ohm (depending on soil)
✅ Short-Circuit Capacity: Up to 52.5 KA
✅ Compound: Conductive Backfill Compound (BFC) included
✅ Standard Compliance: IS 3043, IEEE 80, IEC 60364
✅ Testing: CPRI Tested & PWD Approved

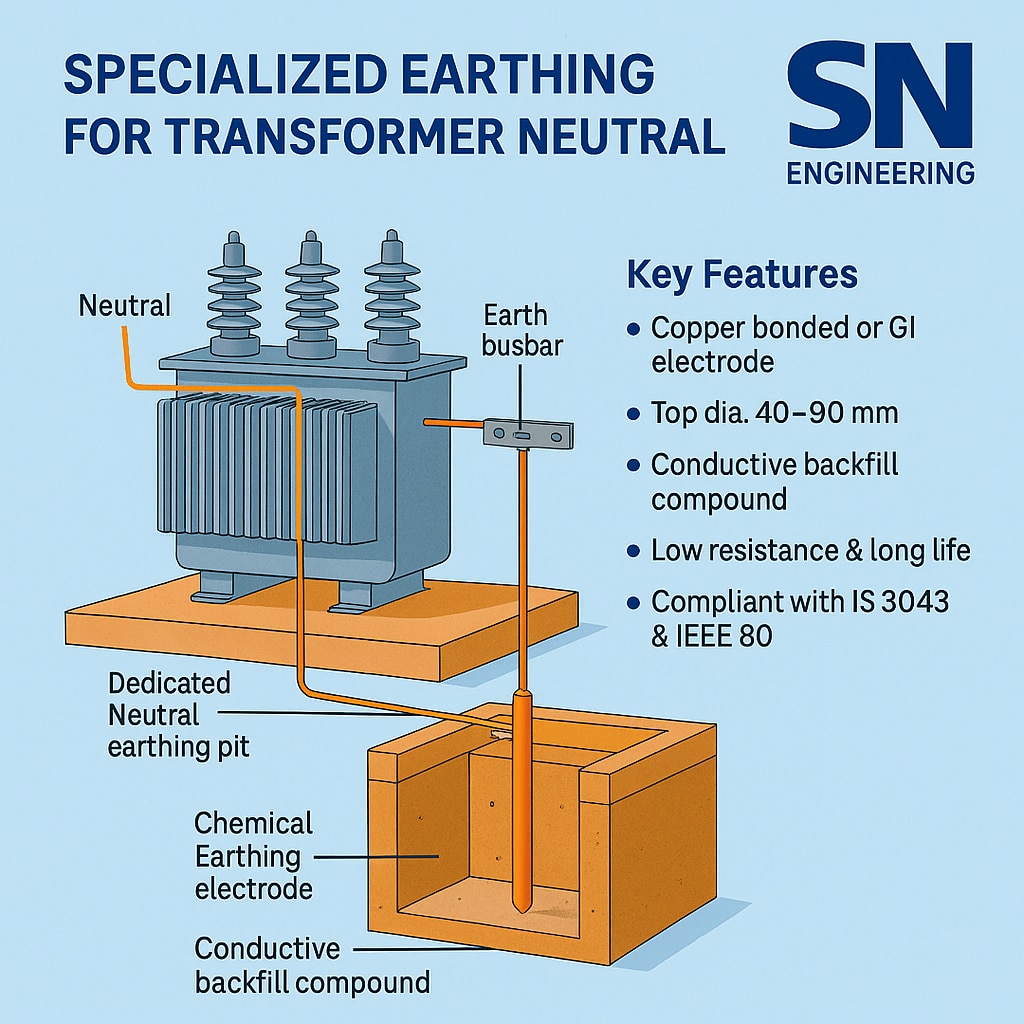

🧠 System Design Includes

• Dedicated Neutral Earthing Pit near transformer base

• Copper/GI Earth Strip Interconnections

• Chemical Backfill for Low Resistance

• Earth Busbar with Test Link

• Moisture Retaining Compounds for long life

🏭 Applications

• Distribution Transformers

• Power Transformers (33kV, 66kV, 132kV, 220kV)

• Industrial Substations

• Solar & Renewable Power Plants

• DG Set and Utility Yards

🌟 Advantages

✅ Ensures stable system voltage during fault
✅ Reduces damage risk to transformer windings
✅ Minimizes voltage rise during lightning or short-circuit faults
✅ Long life, low maintenance
✅ Designed for extreme soil & weather conditions

🧩 Why SN Engineering

✔ Decades of experience in earthing & lightning protection
✔ CPRI & PWD approved materials
✔ Custom-designed solutions per transformer rating
✔ End-to-end support — design, supply, testing, and commissioning

🔍 SEO Keywords

Transformer Neutral Earthing | Neutral Earthing System | Transformer Grounding | Specialized Earthing for Transformer | SN Engineering Earthing | IS 3043 Earthing System | CPRI Approved Earthing | Chemical Earthing for Transformer | IEC 60364 Earthing | Substation Grounding System

📱 Suggested Hashtags

#TransformerEarthing
#NeutralEarthing
#ChemicalEarthing
#SNEgineering
#ElectricalSafety
#SubstationEarthing
#IS3043
#IECEarthing
#PowerTransformer
#GroundingSystem

Why SN Engineering’s 80mm, 3-Meter 99.99% Copper Chemical Earthing Electrode Outperforms Traditional Copper Plate Earthing

🌍 Introduction

The 80mm, 3-meter SN Engineering 99.99% pure copper chemical earthing electrode represents the next generation of grounding technology.
It delivers higher performance, greater durability, and more reliable protection compared to conventional copper plate earthing — especially in India’s varied soil conditions.

Let’s explore why this system is considered superior in conductivity, safety, and long-term efficiency.

⚙️ 1. Superior Conductivity

The electrode is made from 99.99% pure electrolytic copper, ensuring maximum electrical conductivity and minimal resistance.
This means fault current safely dissipates into the earth, maintaining system stability even in high-resistivity soils.

👉 Copper plate earthing can lose effectiveness over time as soil contact deteriorates, reducing conductivity.

🏜️ 2. Better Performance in High-Resistivity Soils

Chemical earthing electrodes outperform copper plates in dry, rocky, or sandy soils.
The backfill compound (bentonite, salts, conductive minerals) surrounding the electrode improves soil conductivity by retaining moisture — maintaining consistently low resistance all year round.

👉 Copper plates, by contrast, rely solely on natural soil moisture, resulting in variable performance.

💧 3. Moisture Retention & Corrosion Resistance

SN Engineering electrodes are surrounded by moisture-retaining backfill compounds that:

• Prevent drying of the electrode area

• Protect copper from corrosion

• Maintain uniform performance over years

👉 Copper plate earthing systems degrade faster if soil moisture fluctuates or salts are not replenished.

🔩 4. Compact Design & Easy Installation

The 3-meter-long, 80mm diameter chemical earthing electrode penetrates deep into the soil — ensuring effective grounding with minimal excavation.
Installation is quick, clean, and space-efficient.

👉 Copper plate earthing requires a large pit (typically 600×600×3mm or larger) and significant manual work.

🧱 5. Long-Term Durability

Chemical earthing electrodes offer a lifespan exceeding 15 years, thanks to anti-corrosive backfill and pure copper construction.
They remain maintenance-free while retaining low resistance.

👉 Copper plates often corrode or lose contact due to changing soil conditions, requiring maintenance or replacement.

⚡ 6. Consistent Performance in All Seasons

The moisture-retaining compound ensures reliable conductivity year-round — even during extreme heat or drought.
Performance remains consistent and dependable.

👉 Copper plate earthing systems show fluctuating resistance levels depending on soil moisture.

📉 7. Lower Resistance to Ground

The 80mm, 3m electrode offers a deep penetration path and a chemical interface that minimizes resistance to ground, even in high-resistivity soils.
This provides a stable and efficient earthing connection for transformer neutrals, substations, and power systems.

👉 Copper plate earthing may not achieve such low resistance in dry or sandy conditions.

💰 8. Long-Term Cost Efficiency

While initial investment in chemical earthing may be slightly higher, maintenance-free operation and longevity make it far more cost-effective over time.

👉 Copper plate earthing requires periodic salt refilling, water maintenance, and more frequent replacement — raising lifetime costs.

📏 9. Standards & Compliance

SN Engineering’s Chemical Earthing Electrodes comply with:

• IS 3043: 2018 (Code of Practice for Earthing)

• IEC 60364

• IEEE 80

• CPRI and PWD testing certifications

They meet the highest safety and performance standards for modern electrical systems.

✅ Conclusion: Why SN Engineering’s Chemical Earthing is Better
